ReinerCurrent model

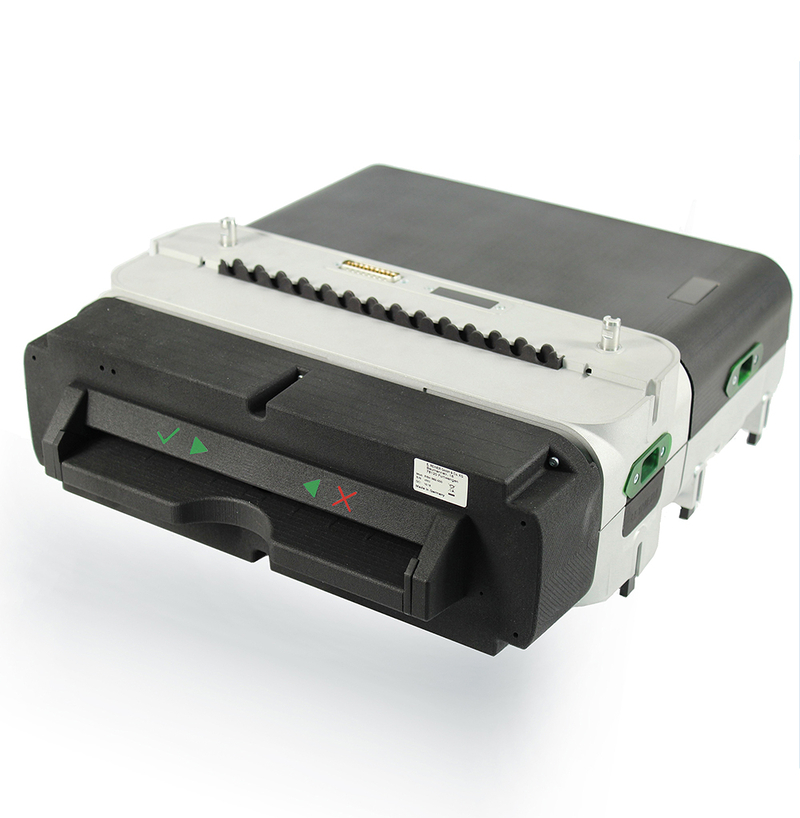

Reiner Multiformat Scanner RS 980
Kiosk / ATM Embedded · Self-service kiosk · ATM · Self-service terminal
Pull-in scan module for kiosk embedding that accepts documents from cheque size up to DIN A4. No magnetic MICR read head — optical imaging only, with optional UV and IR illumination for security feature detection. Handles single documents only (no batch feed).
Reiner Multiformat Scanner RS 980 specifications
BrandReiner
ModelMultiformat Scanner RS 980
CategoryKiosk / ATM Embedded
StatusCurrent
ResolutionUp to 600 dpi
Duplex Front + rear
Colour capture Full colour
MICR Not present
Scanner connectivity and interfaces
- USB 2.0
Cheque scanner deployment environments
- Self-service kiosk
- ATM
- Self-service terminal
Notes
Dimensions: 165 × 375 × 140 mm, 6.9 kg. Document width 100–220 mm, length 60–356 mm.
